HomeTiles

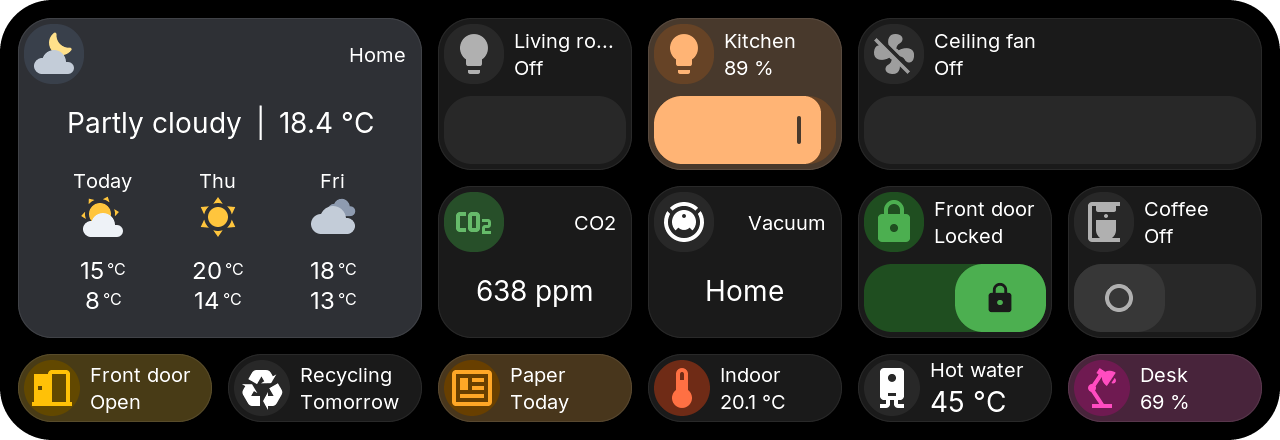

HomeTiles is free, open-source firmware that turns a supported touch display into a Home Assistant control panel. Use tiles to switch lights, adjust heating, control music, and see sensor or energy data at a glance.
Get Started

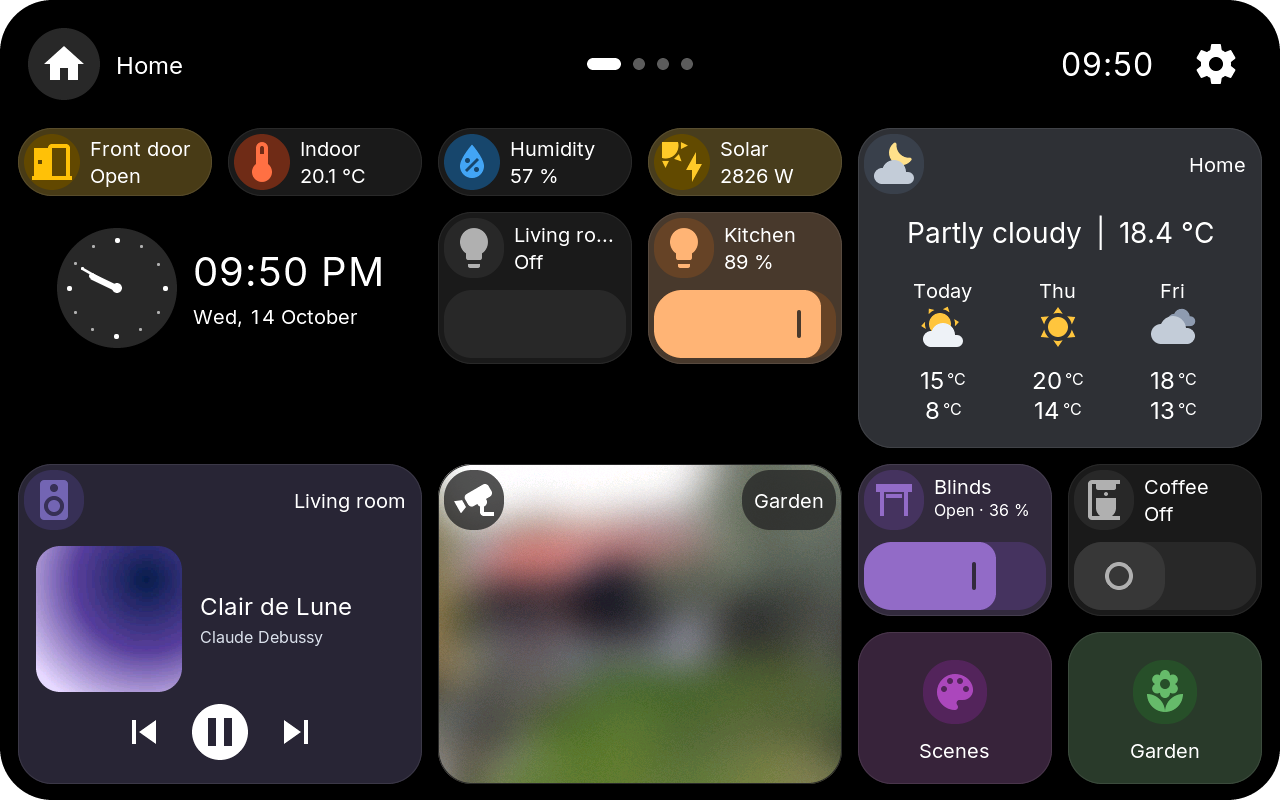

What It Looks Like
Device Support
Match the exact hardware revision before flashing. Open online flasher.
ESP32-P4
| Model | Display | Status | Link |
|---|---|---|---|
| M5Stack Tab5 | 5" / 1280×720 | Tested | Link |

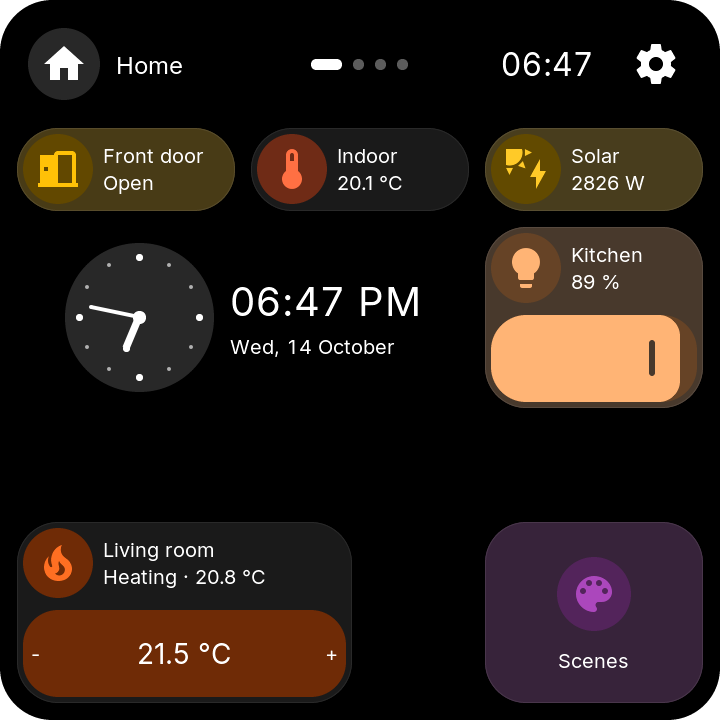

| Waveshare LCD-4B (P4) | 4" / 720×720 | Tested | Link |
| Waveshare 86 Panel ETH-2RO | 4" / 720×720 | Tested | Link |
| Waveshare LCD-8 (P4) | 8" / 1280×800 | Tested | Link |
| Guition JC8012P4A1 V1 | 10.1" / 1280×800 | Tested | Link |
| Waveshare LCD-4.3 (P4) | 4.3" / 800×480 | Partial | Link |
| Waveshare LCD-5 (P4 pre-v3) | 5" / 1280×720 | Pending | Link |
| Waveshare LCD-5 (P4 v3.x) | 5" / 1280×720 | Experimental | Link |
| Waveshare LCD-7 (P4) | 7" / 1280×720 | Pending | Link |
| Waveshare 7B/7B-C (P4 pre-v3) | 7" / 1024×600 | Pending | Link |
| Waveshare 7B/7B-C (P4 v3.x) | 7" / 1024×600 | Experimental | Link |
| Waveshare LCD-10.1 (P4) | 10.1" / 1280×800 | Partial | Link |
| Guition JC8012P4A1 V2 | 10.1" / 1280×800 | Tested | Link |
| Guition JC8012P4A1 V3 | 10.1" / 1280×800 | Experimental | Link |
| Guition JC1060P470C V1 | 7" / 1024×600 | Tested | Link |
| Guition JC1060P470C V2 | 7" / 1024×600 | Partial | Link |
| Guition JC4880P443 | 4.3" / 480×800 | Pending | Link |
ESP32-S3
| Model | Display | Status | Link |
|---|---|---|---|
| Guition ESP32-4848S040C_I | 4" / 480×480 | Tested | Link |
| Waveshare LCD-4 Rev 4.0 (S3) | 4" / 480×480 | Tested | Link |
| Waveshare LCD-4B (S3) | 4" / 480×480 | Pending | Link |
| Golden Security GS-T3E v2 | 4" / 480×480 | Pending | Link |
Hardware-tested by the maintainer.
Hardware-tested by the maintainer. A brief blue flash while saving or updating is a known display limitation.
Hardware operation and native Ethernet are confirmed. Uses the ESP32-P4 LCD-4B firmware.
Hardware-tested by the maintainer. A brief blue flash while saving or updating is a known display limitation.
v0.6.10 includes the V1-specific SDIO receive fix. Camera streams and Web Admin OTA were confirmed stable in the integrated v0.6.9b1 test build. Camera remains experimental.
Display, touch, Wi-Fi, MQTT, Home Assistant and Weather are verified. microSD and OTA checks are still pending.
New profile built from Waveshare's documentation for ESP32-P4 before v3.0 (for example v1.3). Shown like the Tab5 at 1280 × 720. Community validation is pending.
Experimental firmware for ESP32-P4 v3.1 or newer, built from Waveshare's documentation. Check the revision with esptool chip-id first. Community validation is pending.
Firmware is available, but hardware validation is still requested. This 1280 × 720 model uses different firmware from LCD-7B.
A 7B-C was reported working with v0.6.8, without an exact chip revision in the report. Confirmation for this pre-v3 profile is still needed.
Dedicated experimental firmware for ESP32-P4 v3.1 or newer, including v3.2. Hardware validation is still pending. Boards running the former v3.1-only image need one browser installer Update to switch to it.
Display, touch, Wi-Fi, MQTT and OTA were reported working. Corrected defaults, SD and Camera still need release validation. From v0.7.0, boards with ESP32-P4 v3.1 or newer get a separate experimental firmware (contributor-tested on v3.2).
Maintainer-tested on JC8012P4A1C_I_W_Y1, SKU:10153002-V2. Display, touch, brightness, MQTT and microSD are confirmed. The interface runs smoothly with the v0.6.12 PPA correction. The SD reboot reported on another unit in issue #55 remains under investigation.
The V2 board with ESP32-P4 v3.2. It gets its own experimental firmware; the V2 image does not start on it. Hardware validation is still pending.
Touch, brightness, SD, Wi-Fi/MQTT and OTA were confirmed working since v0.6.5. Requires the exact _I_W_Y model.
Basic operation is confirmed. v0.6.8 includes the orientation correction; full release and OTA confirmation remain pending.
Hardware-tested by the maintainer. Camera tiles show about 4 frames per second; a brief black screen while saving is expected.
First released in v0.6.10. Display, backlight, touch, Wi-Fi, Web Admin, MQTT and Web OTA are contributor-tested. Rev 4.0 only; Camera tiles and SD access are unavailable.
Initial hardware testing was reported with PR #29. The adapted release profile still needs confirmation. No microSD or Camera tiles.
Community profile for PCB v2.3, new in v0.9.3. Its pins come from public openHASP and ESPHome configurations; it has its own driver and image, derived from the Guition ESP32-4848S040. Hardware validation by a board owner is still pending. No microSD slot; from v0.9.4 the relays on GPIO45, GPIO46 and GPIO44 are available together under I/O.
Contributor-tested on JC4880P443C_I_W with a local build: display, touch, rotation, camera tile, Wi-Fi/MQTT, microSD and OTA. Firmware is available in v0.7.0; release-image validation is pending. Portrait 480×800 layout; uses different firmware from the Waveshare LCD-4.3.

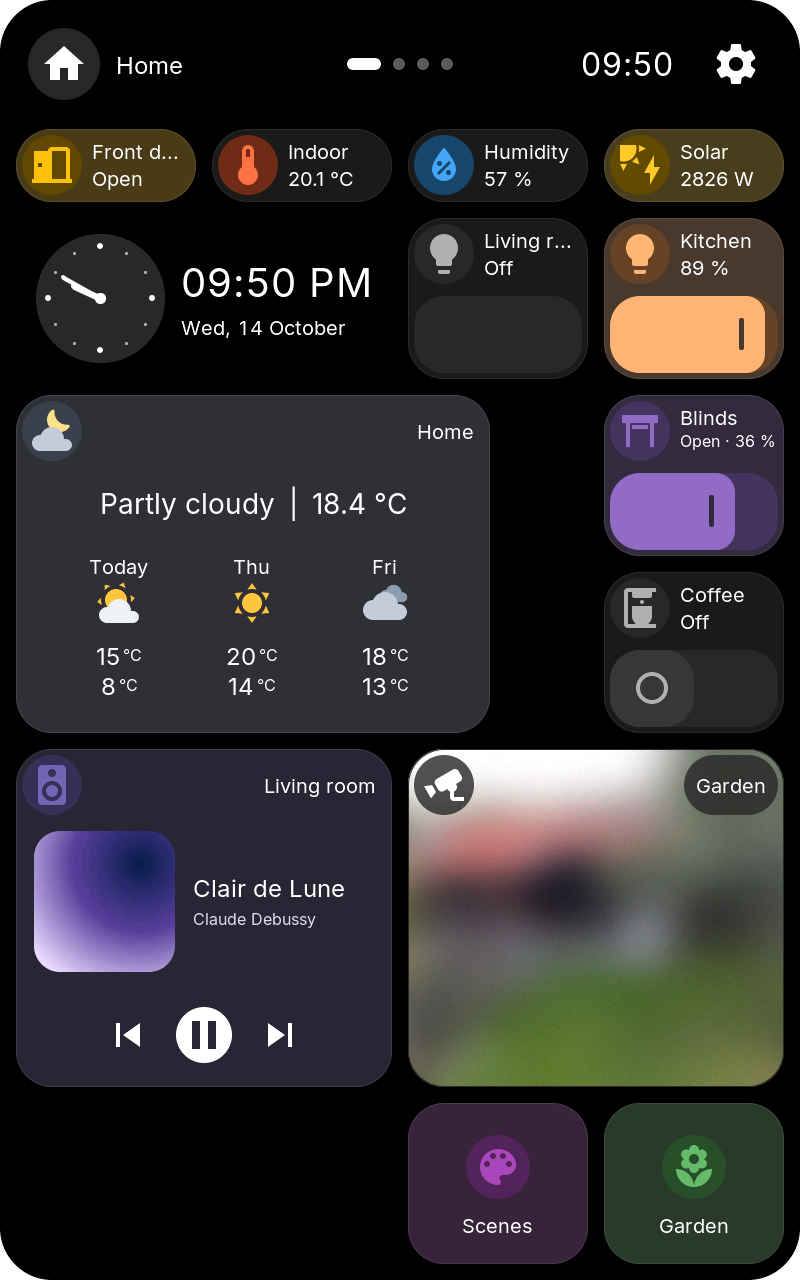

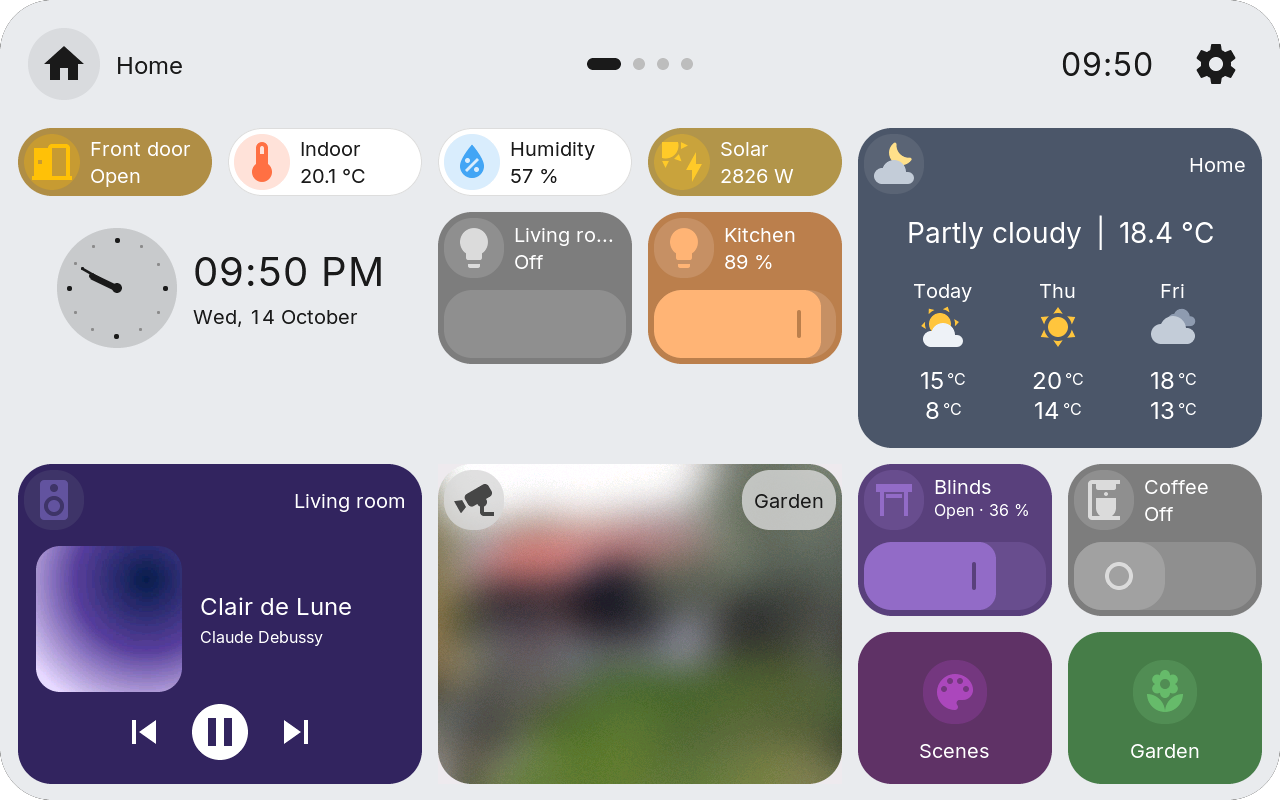

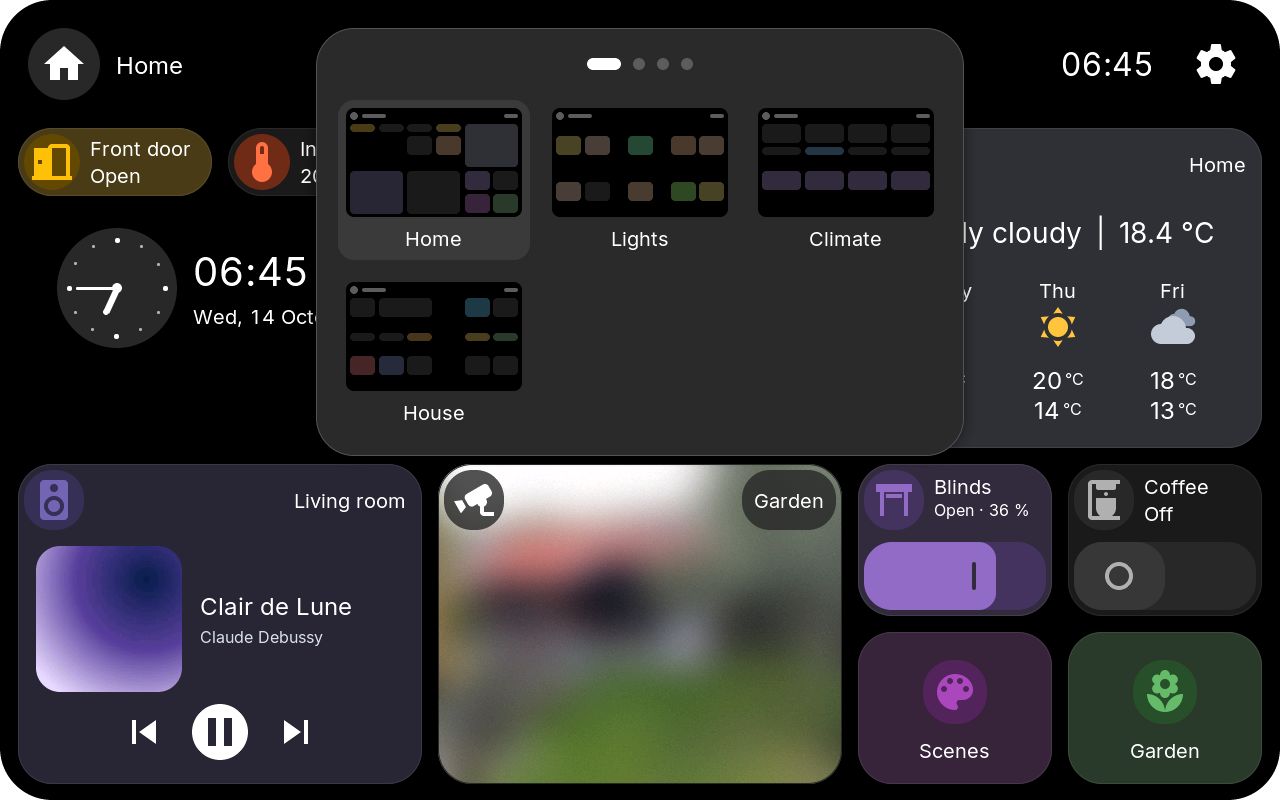

New in v0.9.0: a direct connection without MQTT, pages, an upright mode and a light theme. Release notes
Firmware and Bridge are MIT-licensed. Support HomeTiles.
