Home Assistant Setup Guide

This guide connects a HomeTiles display to Home Assistant, starting from scratch. No YAML editing is required.

What you need

  • Home Assistant (any recent install type)
  • A display with the firmware flashed
  • 15 minutes

How It Works

Display ← MQTT → MQTT Broker ← MQTT → Bridge IntegrationHome Assistant

The display never talks to Home Assistant directly. Everything goes through MQTT:

  • The bridge integration pushes entity states, icons, weather forecasts, sensor history, and energy data to the display.
  • The display sends commands back (light/switch/media/scene control), which the bridge executes in Home Assistant.
  • Experimental camera popups use MQTT only for setup and control; display-sized JPEG frames travel directly over the local network.

So you need three things: an MQTT broker, the bridge integration, and the display firmware. This guide covers all supported devices.

Step 1: Set Up An MQTT Broker

If you already have a working MQTT broker, skip to Step 2.

The easiest option on Home Assistant OS is the official Mosquitto add-on:

  1. In Home Assistant, go to Settings → Add-ons → Add-on Store.
  2. Search for Mosquitto broker, install it, and start it. Enable Start on boot and Watchdog.
  3. Create a Home Assistant user for the display: Settings → People → Users → Add user (for example display, with a password of your choice). The Mosquitto add-on accepts Home Assistant users as MQTT credentials.
  4. Set up the MQTT integration: after the add-on starts, Home Assistant usually discovers it automatically — go to Settings → Devices & Services, look for the discovered MQTT integration, and confirm it. If it is not discovered, add the MQTT integration manually and use core-mosquitto as the broker address.

Step 2: Install The Bridge Integration

The bridge is a custom integration: HomeTiles Bridge

  1. HACS → Integrations → three-dot menu → Custom repositories
  2. Repository: https://github.com/GalusPeres/HomeTiles-Bridge, category Integration, click Add.
  3. Search for HomeTiles Bridge in HACS and download it.
  4. Restart Home Assistant.

Manual

  1. Copy the custom_components/tab5_lvgl folder from the bridge repository into your Home Assistant custom_components directory.
  2. Restart Home Assistant.

Step 3: Add The Integration

  1. Go to Settings → Devices & Services → Add Integration.
  2. Search for HomeTiles Bridge.
  3. Keep the defaults unless you have a reason not to — the details (base topic, HA prefix) are explained on the bridge page.

Step 4: Get The Display Online

On the display, open Settings → WiFi. Either:

  • pick your network from the scan list and enter the password with the on-screen keyboard, or
  • tap Enable AP: the display starts a hotspot (password 12345678, QR code shown on screen) — connect to it and enter your WiFi credentials in the captive portal.

Step 5: Pair The Display

As long as the display has no MQTT credentials configured yet, it announces itself on the network automatically. In Home Assistant, a discovered device card appears under Settings → Devices & Services — confirm it, and the bridge pushes your MQTT broker's credentials to the display. No typing required.

Afterwards the display shows up as a device under the bridge integration:

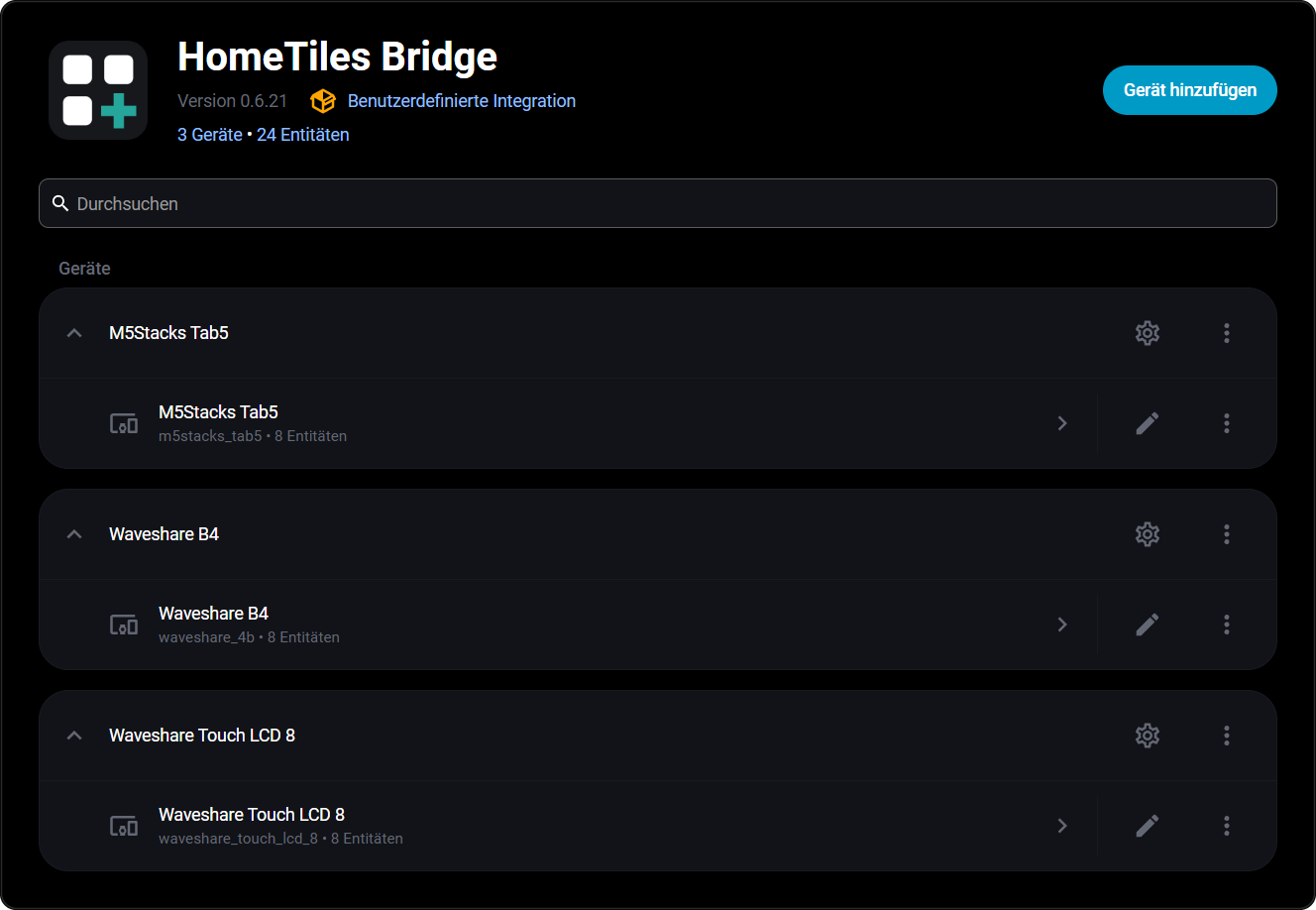

Panels as devices in the bridge integration

Manual alternative: enter MQTT settings yourself

If you prefer manual setup (or discovery is blocked in your network), open the display's web admin panel at http://<display-ip>/ (the IP is shown in the on-device WiFi settings) and enter under Settings → MQTT:

  • Host: the IP address of your Home Assistant machine (when using the Mosquitto add-on, the broker runs there)
  • Port: 1883
  • Username / Password: the Home Assistant user from Step 1
  • Leave Device topic base and Home Assistant prefix at their defaults unless you changed them in the bridge

Save — the display restarts and connects to the broker.

Display missing in Home Assistant later?

The on-device Settings → System → Pairing button re-announces the display at any time — useful if you deleted the device in Home Assistant and want it back.

Step 6: Choose What The Display Can See

Open the integration entry and click Configure. There are three sections:

  • Panel Settings — base topic, HA prefix, and device metadata.
  • Entity Configuration — pick the sensors, weather entities, lights, switches, media players, cameras, and scenes/scripts the display should have access to. Scene aliases are generated automatically; you can also map them manually (one alias=entity_id per line).
  • Energy Dashboard — enable electricity, gas, and/or water. This requires the Home Assistant Energy Dashboard to be set up; the display's energy tile pulls its statistics from there.

Entity selections are shared across all panels — every display can use every entity you pick here.

Step 7: Build Your Dashboard

Open the display's web admin panel and add tiles for the entities you exposed in Step 6 — sensors, lights, weather, energy, media, scenes, and so on. Changes appear on the display immediately.

For a Camera tile, install HomeTiles Bridge v0.6.28 or newer, select the camera in Step 6, and ensure the display can reach the Home Assistant host on TCP ports 8124–8131. Camera support is experimental and available on ESP32-P4 targets only.

Optional local GPIO switches, onboard relays, and DS18B20 sensors are configured on each panel's web-admin I/O tab instead of the shared Bridge entity selection. They are immediately usable by tiles on that panel. HomeTiles Bridge v0.6.32 or newer also adds them automatically to the corresponding Home Assistant device; see Local Hardware I/O.

Multiple Displays

  • Each display needs its own base topic (for example hometiles, panel_kitchen, ...) — set in the display's MQTT settings, or handled automatically during pairing.
  • The HA prefix stays the same for all displays.
  • Additional displays are discovered automatically: once the first panel is set up, any new display that connects gets its own integration entry without manual steps.

Troubleshooting

The display connects to WiFi but shows no data

  • Check the MQTT settings on the display (host, port, credentials).
  • Make sure base topic and HA prefix match between the display and the integration entry.
  • Check Settings → Devices & Services — the panel should be listed under the bridge integration. If not, tap Settings → System → Pairing on the display; it re-announces itself.

No "discovered device" card appears

  • Discovery only runs while the display has no MQTT credentials stored. If it had some before, either use the manual setup above or factory-flash the device.
  • If the device existed in Home Assistant before, delete the old device entry first — its ID survives a re-flash, and Home Assistant won't re-discover a known ID.

Lights/switches/sensors are missing on the display

  • They must be selected in the bridge options first (Step 6), then assigned to a tile in the web admin (Step 7).

The energy tile stays empty

  • The Home Assistant Energy Dashboard must be configured, and the matching category (electricity/gas/water) must be enabled in the bridge's Energy options.

MQTT login fails

  • When using the Mosquitto add-on, the credentials are a regular Home Assistant user (Step 1), not an add-on-specific account.
