HomeTiles v0.6.0

HomeTiles v0.6.0 introduces a complete Climate tile and popup system, improves network transport reliability, and polishes the web editor and on-device UI across every supported display.

Configurable Climate Tiles

  • Climate tiles now contain a configurable grid of mini-tiles.
  • Mini-tiles can show current temperature, current humidity, target temperature, separate heating and cooling targets, target humidity, or HVAC mode.
  • Mini-tiles can be selected, moved, removed, and rearranged directly in the web preview.
  • Resizing a Climate tile updates its slot grid and layout live.
  • Automatic content uses the capabilities reported by the Home Assistant entity, so unsupported controls stay hidden.
  • Empty Climate tiles remain empty until an entity is selected.
  • Web previews and the LVGL device renderer use matching geometry, spacing, alignment, value formatting, and translated labels.

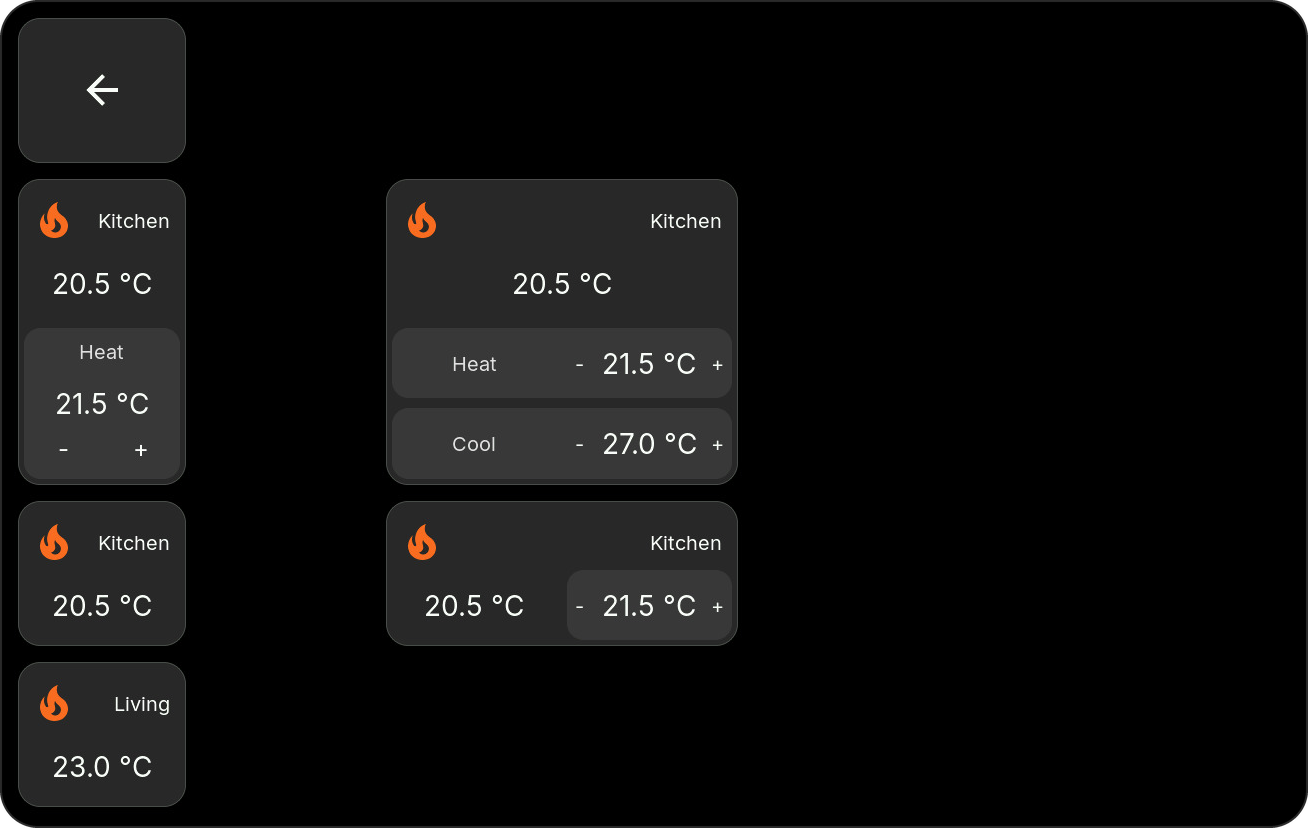

Climate tiles with several mini-tile layouts

Climate Control Popup

The new touch-first popup adapts to each entity and can expose:

  • a single target temperature or a low/high target range
  • target humidity
  • HVAC modes
  • presets
  • fan modes
  • vertical swing modes
  • horizontal swing modes

Only supported controls are shown. Long custom option lists are smoothly touch-scrollable without a visible scrollbar. Current temperature and humidity, target markers, labels, and the circular control are aligned for both 720p and 800p layouts. Marker colors also update while a target is being dragged.

Rapid plus/minus input is handled without stale state updates causing the value to jump backwards.

Full Climate popup with HVAC modes, target range, humidity, preset, fan, and swing controls Capability-aware heat-only Climate popup

Web Editor And Localization

  • Parent tiles and mini-tiles have distinct selection, hover, and drag feedback.
  • Dragging a mini-tile no longer selects or moves its parent.
  • Parent resize previews keep mini-tile geometry stable in every direction.
  • Climate labels use the shared localization profile instead of language-specific JavaScript branches.
  • German and English captions remain consistent between settings, web previews, and the device UI.

Network And Stability

  • Added a shared network transport layer with improved WiFi/Ethernet takeover and fallback behavior.
  • Improved UI responsiveness while network transports reconnect.
  • Hardened ESP-Hosted SDIO transmit and receive allocation paths used by the ESP32-P4/ESP32-C6 connection.
  • Existing crash diagnostics and safe recovery remain available through the web admin.

Supported Devices

Every release includes OTA and factory binaries for:

  • M5Stack Tab5
  • Waveshare ESP32-P4-WIFI6-Touch-LCD-4B
  • Waveshare ESP32-P4-WIFI6-Touch-LCD-8

Use the plain .bin for an OTA update and the _factory.bin only for the first USB flash. See Firmware Updates for the complete instructions.
